FullProb

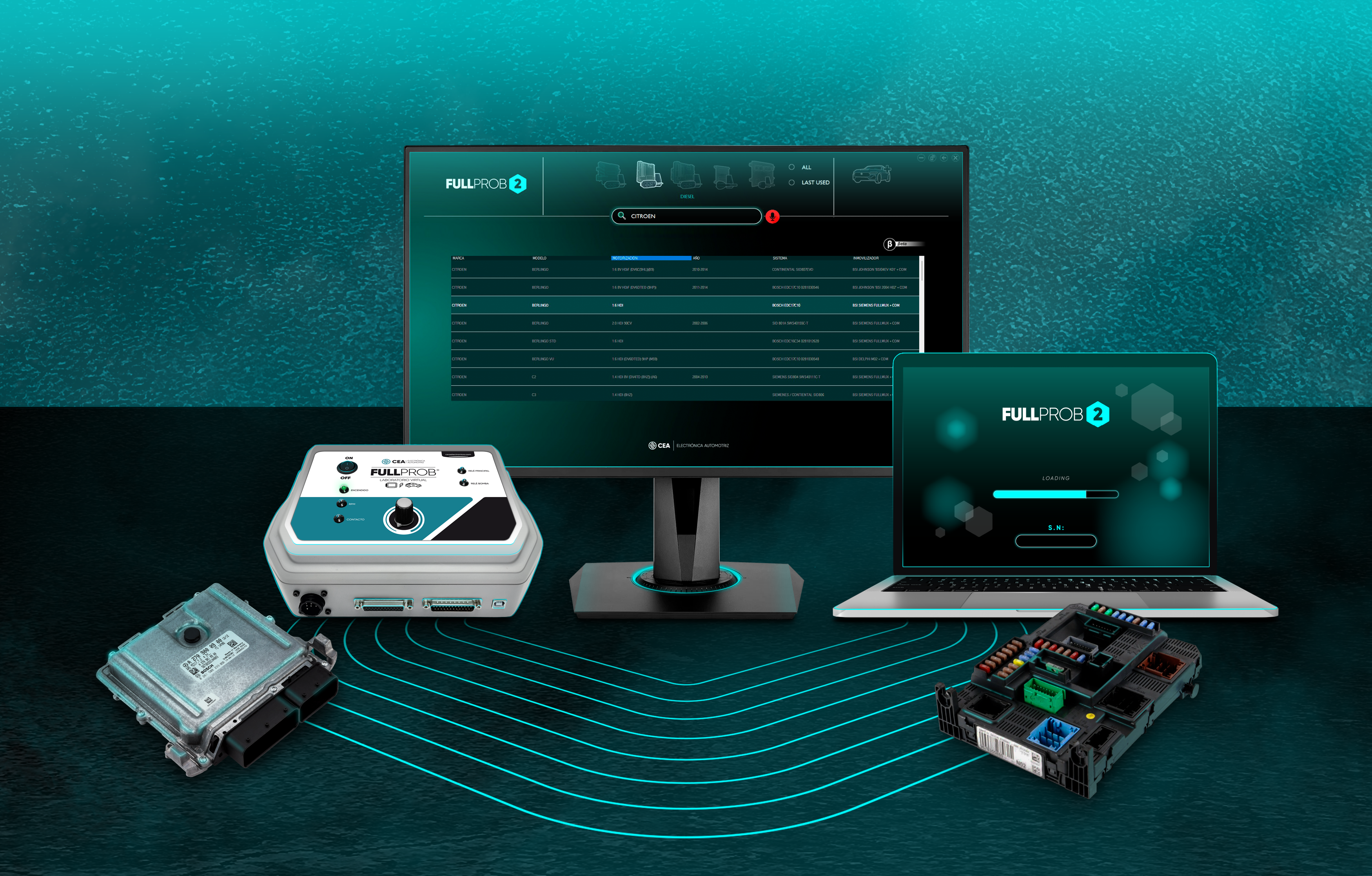

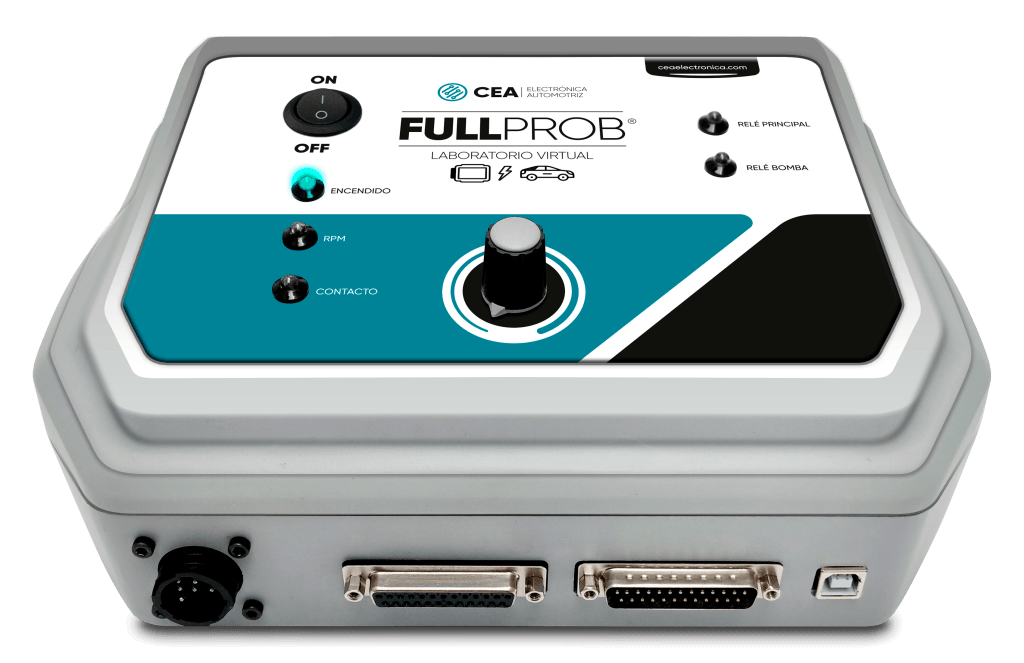

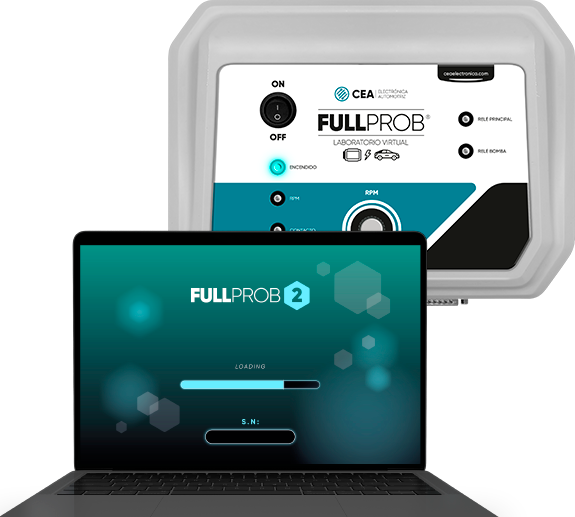

The fullprob is a novel concept in electronics diagnosis: a compact device with USB connection and intuitive navigation software.

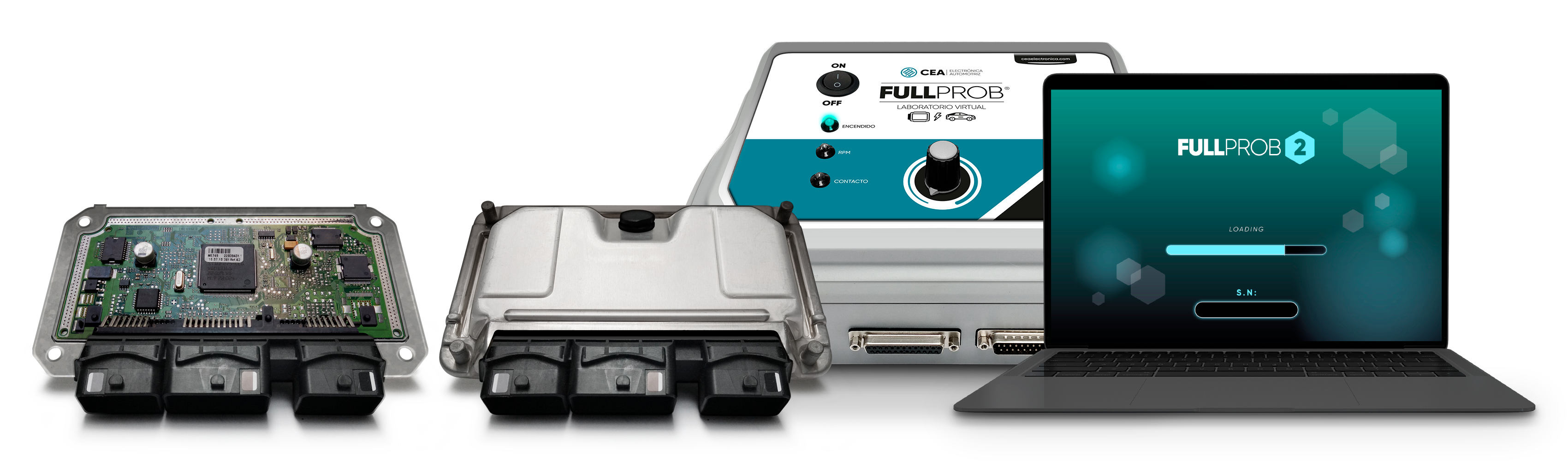

fullprob-producto-pagina-central
FUNCTIONS
  • ECU ANALYZER.

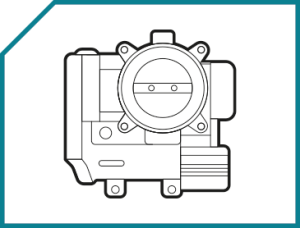

  • THROTTLE BODY TESTER.
  • SENSOR SIMULATOR.
  • 5V MEASURING SENSOR.
  • REAL TIME GRAPHING UTILITY FOR SENSORS, WITH MAXIMUM AND MINIMUM VARIABLES (SENSOR ANALYZER).
  • REPORT GENERATOR: generates a printable report of all of the tests run by the FullProb that shows user, customer and vehicle information.
  • The report automatically includes generated values, returned values and graphs generated during the test.
  • The user selects the type of RPM signal (sensor simulator).
  • Fuel injector test function.
  • Module test function.
  • Every ECU to be tested has its own functions (injectors, ignition, MAP or MAF, and ECU tester).
  • When running a throttle control test, the user can see a control screen that displays maximum, minimum and real time values.
ECU TESTER
  • Fuel pump timer.
  • Fuel pump output with RPM reading.
  • Injector output with RPM reading.
  • Ignition output with RPM reading.
  • +30 (battery) line amperage.
  • +15 (ignition) line amperage.
  • Sensor input Voltage reading.
CONTENTS
  • Power cord.
  • 2 universal connector harnesses.
  • Throttle control test cable.
  • Injector test cable.
  • USB cable.
  • User Manual.
  • Throttle body test information.
  • Installation CD.
  • Carry case.

ECU ANALYZER

PRINTOUT REPORT

REAL TIME GRAPHIC INFORMATION

PUMP TIMER

MULTIPLE USERS

USB CONNECTION

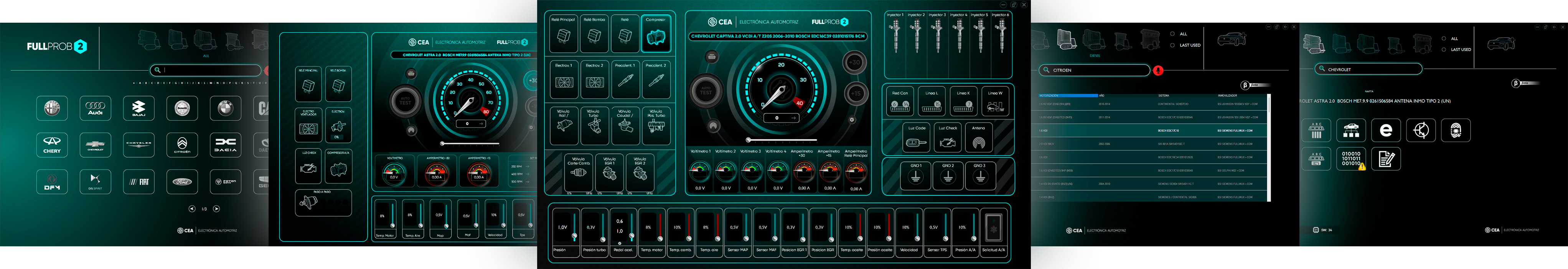

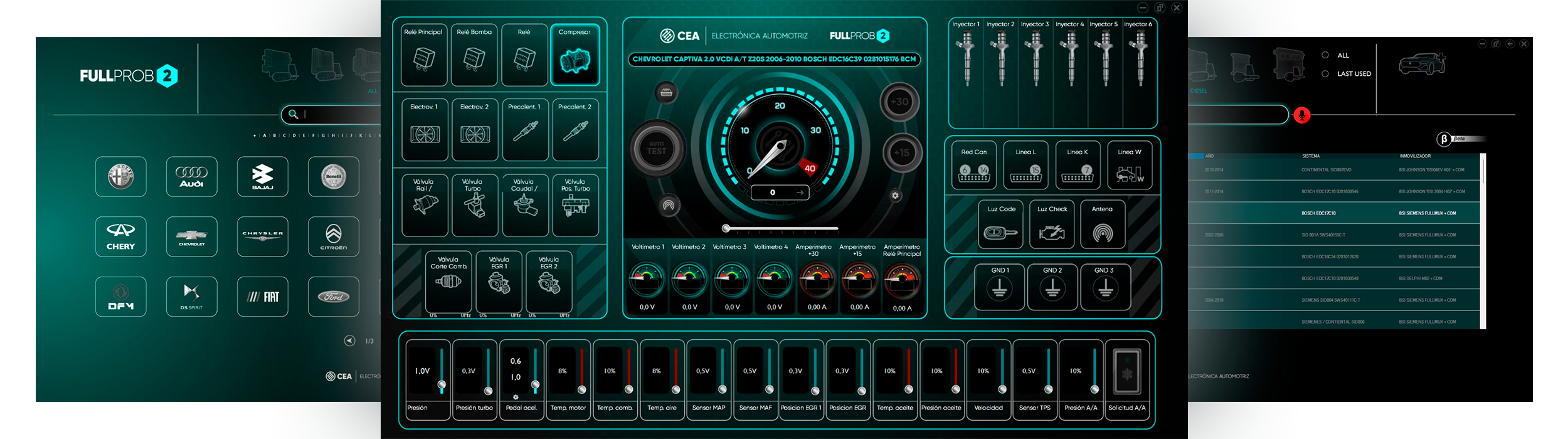

ECU ANALYZER WITH CONTROL SCREEN

PRINTOUT REPORT

Generates a printout report of all functions tested.

GRAPHIC SOFTWARE

Real-time visual readings of sensors readings, with maximum and minimum values.

SENSORS

The user selects the system used by the RPM sensor.

FUNCTIONS

Every ECU has its own functions. (injection, ignition, etc.)

0%

    FullProb

    The fullprob is a novel concept in electronics diagnosis: a compact device with USB connection and intuitive navigation software.
    The user can visualize a control screen that displays maximum, minimum and real time values when testing throttle control units.

    FULLPROB / What is the FullProb?
    FULLPROB / Differences with the FullProb.
    01 FULLPROB METHOD
    Installation and Assembly of the Test Bench.
    02 FULLPROB METHOD
    Main Menu and Functions.
    03 FULLPROB METHOD
    Gasoline Ecu Test Screen.
    04 FULLPROB METHOD
    Gasoline Ecu Test (Immo Off).
    Are you interested in this product? Contact us!
