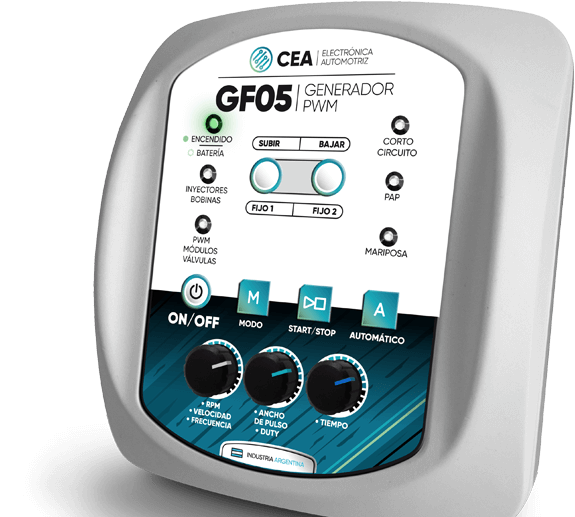

GF 05 Pulse Generator

In any shop that does fuel injection jobs, it is very important to count on a pulse generator that allows you to test fuel injectors, either on the bench or in the vehicle.

The GF05 PULSE GENERATOR has the necessary features to test injectors, ignition coils, and Magnetti Marelli or GM stepper motors. This device enables the user test idle valves, EGR valves, check systems that use hall effects supplied with 12V, test throttle body units among other applications.

The GF03 technology supports both inductive and resistive loads and high currents, and is able to test low resistance injectors even in parallel.

In dialysis cleaning applications, this pulse generator complements injector test bench or a modular system.

FUNCTIONS
  • Injector pulse generator.
  • Hall pulse simulator.
  • Idle valve tester.
  • EGR valve tester.
  • Clean injectors.
  • Start an engine.
  • Test stepper motors.
  • Test ignition coils.
  • Throttle body tester.
  • PWM valve tester (IAC, EGR etc.).
SPECIFICATIONS
  • Pulse generator for injectors (500 to 7000 per minute).
  • Pulse width adjustments (ms) / 0.5 to 7 (*).
  • Maximum output current (A) / 15.
  • Uses 12V power.
  • Continuous pulse mode / Yes.
  • Acceleration mode / Yes.
  • Timer mode / 0 to 6 minutes.
  • M. Marelli stepper motor tester / Yes.
  • GM Stepper motor tester/ Yes.
NEW!
  • PWM Generator with DUTY+.
  • PWM Generator with DUTY-.

NEW! PWM Generator with DUTY +/-

GF05 Pulse Generator

The GF05 Pulse Generator has the necessary features to test injectors, ignition coils, and Magnetti Marelli or GM stepper motors.
With this device you can also test idle valves ,EGR valves,test systems that use 12 V hall effect, and throttle body test as well as other applications .

Are you interested in this product? Contact us!
